High Level Paper Making Polyester Fabric Woven Spiral Type Wear Resistance

China High Level Paper Making Polyester Fabric Woven Spiral Type Wear Resistance supplier
High Level Paper Making Polyester Fabric Woven Spiral Type Wear Resistance supplier High Level Paper Making Polyester Fabric Woven Spiral Type Wear Resistance supplier High Level Paper Making Polyester Fabric Woven Spiral Type Wear Resistance supplier

Large Image :  High Level Paper Making Polyester Fabric Woven Spiral Type Wear Resistance

Product Details:

Place of Origin: Henan, China
Brand Name: PINGAN
Certification: ISO9001:2008
Model Number: 32224

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: Negotiation
Packaging Details: Wooden case or roller packing
Contact Now
Detailed Product Description
Item: Dry Screen Technics: Woven
Type: Spiral Type Material: 100% Polyester

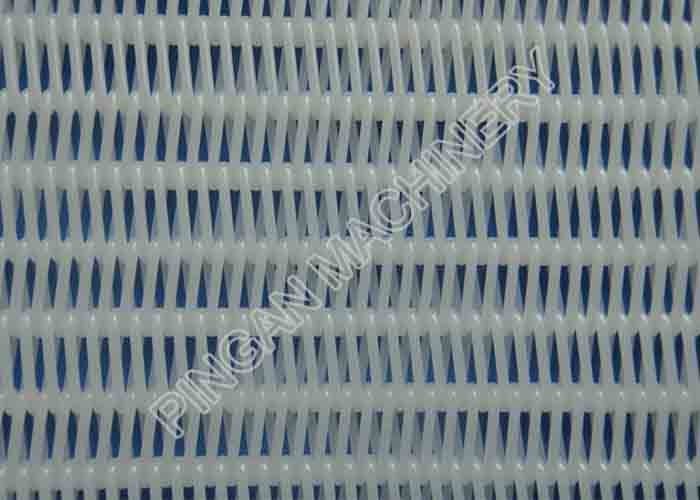

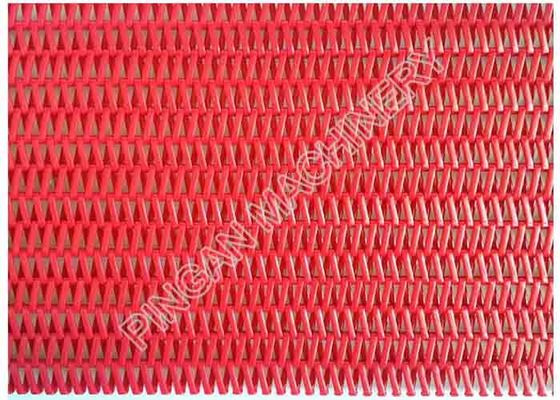

Dry screen high level polyester fabric for paper making industry



Description

Dry screen is suitable for drying large grammage of packing paper, culture paper, board and pulp board. It's widely used in papermaking, coal mine, food, medicine, printing and dyeing and rubber industry. The dry creen is suitable for horizontal belt vacuum pulp washing machine bottom net (instead of rubber belt), can also be used as conveyor belt and composite machine supporting mesh belt.


The polyester spiral dry screen has the advantages of high air permeability, smooth mesh surface, arbitrary disassembly, good strength and long service life. The spiral mesh of special materials also has the characteristics of high temperature resistance, high wear resistance and aging resistance etc.



Types of spiral dry screen Fabric model Wire diameter (mm)

Strength

(N/cm)

Air permeability (m3/m2h)
Warp Weft
King loop #90110 0.9 1.1 above 2300 21000±500
Large loop #4080 0.9 1.1 above 2000 18000±500
Medium loop #3868 0.7 0.9 above 2000 16000±500
Moderate loop #3560 0.6 0.8 above 2000 15000±500
Small loop #3252 0.5 0.7 above 1800 15000±500
Medium loop (flat wire) #3868 0.48*0.82 0.8 above 2000 10000±500



High Level Paper Making Polyester Fabric Woven Spiral Type Wear Resistance
