4200mm Test Liner Paper Making Machines

Description

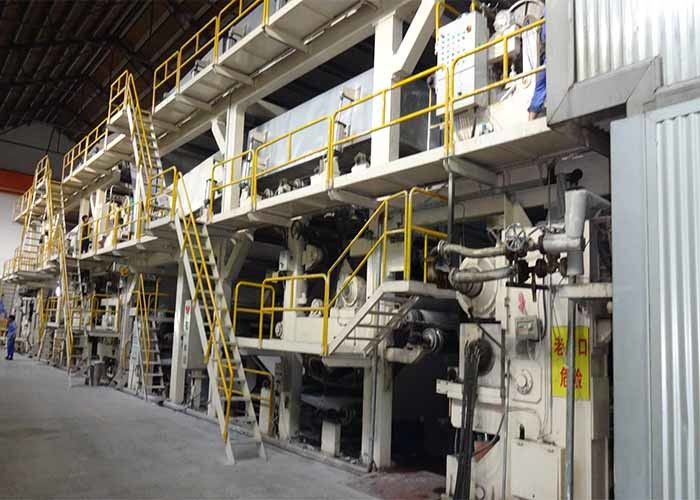

This 4200m double wire paper making machines produces high strength fluting paper, craft paper and test liner paper as well based on the weight of 100-160g/m². This machine consists of two wire forming section, press section, dryer section, paper reeling section, base section and auxiliary system etc.

Main parameters

Output: high strength fluting paper, craft paper and test liner paper

Grammage: 100—160g/m²

Net paper width: 4200mm

Working speed: 130-250m/min

Designed speed: 280m/min

Crawling speed: 25m/min

Dynamic balance speed: 350m/min

Headbox lip width: 4550mm

Gauge: 5300mm

Drive type: Section drive with AC variable frequency

Layout: one floor

Double wire paper making machine structure

4200mm double wire fluting paper, craft paper and test liner paper making machine width diagram

4200mm double wire paper making machine parts manufacturing request

Wire section guide roll, press section guide roll, spread roll, dryer section guide roll and paper leading roll:

•  Dose not allow grith welds in roll.
•  Before processing, the roll body must correct shape.
•  Wire section, guide roll of press section, spread roll, dry section guide roll, paper leading roll: Before processing, the whole roll must annealing treatment.

Frame

•  Before welding, sheet and tube should rectify straight.
•  Before fine machining, it must mechanical vibration treatment to eliminate stress.

Casting parts

•  Big jumbo press roll, dryer cylinder: after casting, thermal insulation treatment to eliminate stress.
•  Other casting: after casting, annealing heat treatment to eliminate the stress.

Spindle nose of roll

•  Wire section guide roll, press section guide roll, spreading roll, dry section guide roll, paper leading roll: Quenching and tempering treatment before finishing.
•  Bearing taper surface of all the bearing and roller must precision fit, the contact surface more than 80%.
