Multi - Wires Duplex Chipboard Paper Making Machine Single Floor Layout

Multi - Wires Duplex Chipboard Paper Making Machine Single Floor Layout

  • Highlight

    chipboard paper making machine

    ,

    paper board making equipment

  • Item
    Cardboard Paper Making Machine
  • Model
    3800mm
  • Color
    Grey Or Customized
  • Design
    OEM
  • Configuration
    High Grade
  • Warranty
    1 Year
  • Place of Origin
    Henan, China
  • Brand Name
    PINGAN
  • Certification
    ISO9001:2008
  • Model Number
    3800mm
  • Minimum Order Quantity
    1set
  • Price
    Negotiation
  • Packaging Details
    wooden case
  • Delivery Time
    8month
  • Payment Terms
    T/T, L/C
  • Supply Ability
    5sets/year

Multi - Wires Duplex Chipboard Paper Making Machine Single Floor Layout

Multi-wires cardboard paper making machine for cardboard and test liner paper

Description

This Multi-wires cardboard paper making machine produces 80-230g/ m² cardboard paper, white top test liner paper. It’s mainly composed of three-ply wire forming section, press section, dryer section, calender, reeling machine, base section, auxiliary system etc.



Structure of the ply-wire Multi-dryers paper making machine

Forming section Air cushion headbox + three wire
Press section Two double blanket big jumbo roll press
Dryer section 30sets dryer cylinders (10+10+size press +10+calender)
Reeling machine Horizontal pneumatic reeling machine



Main technical parameters

Output: cardboard paper, white top test liner paper

Gammage: 80-230g/m2

Net paper width: 3800mm

Reeling width: 3860mm

Headbox lip width: 4150mm

Designed speed: 320m/min

Dynamic balance speed: 400m/min (transmission parts)

Working speed: 250-300m/min

Crawl speed: 25m/min

Gauge: 4900mm

Layout: one floor

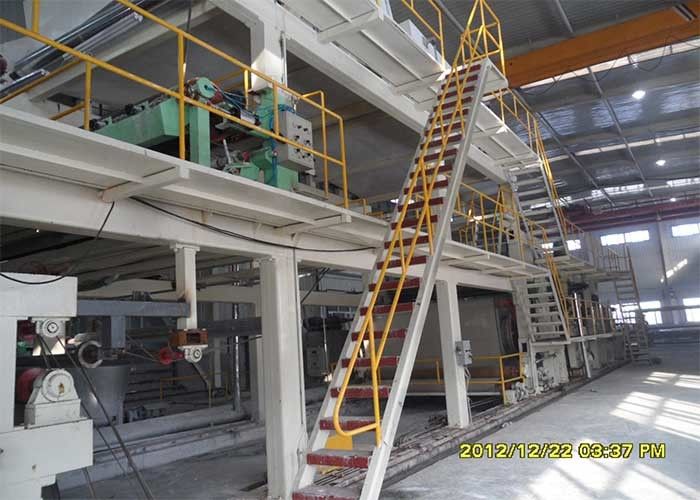

Multi - Wires Duplex Chipboard Paper Making Machine Single Floor Layout 0

Our offices

Multi - Wires Duplex Chipboard Paper Making Machine Single Floor Layout 1

Equipment warranty

  1. The Cardboard paper making machine configuration can reach the expected production capacity, and the internal and external performance requirements of the paper machine should be first considered.
  2. Rubber cover requirement: The guarantee period of rubber layer according to the suppliers guarantee.
  3. Wire section dewater element: cover panel is ceramic. Dewater element body is welded by stainless steel, tempering and hardening treatment.
  4. Bearing: ZWZ
  5. Roll dynamic balance speed: 400m/min
  6. Dryer cylinder dynamic balance speed: 400m/min
  7. Reeling roll dynamic balance speed: 1000m/min
  8. Wet section all auxiliary moto are waterproof motor.
  9. Supply full set rolls, including roll body, shaft, bearing house etc. Taper bearing (No unloading sleeve)
