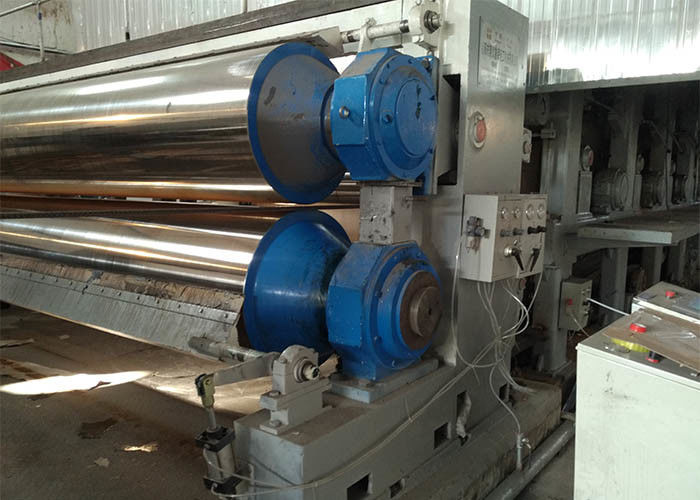

High Grade Corrugated Cardboard Production Line For Making Test Liner Paper

Three wires cardboard paper making machine for white top cardboard and test liner paper

Description

This Three wires cardboard paper making machine produces 100-350g/ m² cardboard paper, white top test liner paper. It’s mainly composed of three-ply wire forming section, press section, dryer section, calender, reeling machine, base section, auxiliary system etc.

Structure of the ply-wire Multi-dryers paper making machine

Main technical parameters

Output: white top cardboard paper, white top test liner paper

Gammage: 100-350g/m²

Net paper width: 3800mm

Reeling width: 3860mm

Headbox lip width: 4150mm

Designed speed: 320m/min

Dynamic balance speed: 400m/min (transmission parts)

Working speed: 250-300m/min

Crawl speed: 25m/min

Gauge: 4900mm

Layout: one floor

Our offices

Equipment warranty

1. The three wires cardboard paper making machine configuration can reach the expected production capacity, and the internal and external performance requirements of the paper machine should be first considered.
2. Rubber cover requirement: The guarantee period of rubber layer according to the suppliers guarantee.
3. Wire section dewater element: cover panel is ceramic. Dewater element body is welded by stainless steel, tempering and hardening treatment.
4. Bearing: ZWZ
5. Roll dynamic balance speed: 400m/min
6. Dryer cylinder dynamic balance speed: 400m/min
7. Reeling roll dynamic balance speed: 1000m/min
8. Wet section all auxiliary moto are waterproof motor.
9. Supply full set rolls, including roll body, shaft, bearing house etc. Taper bearing (No unloading sleeve)
