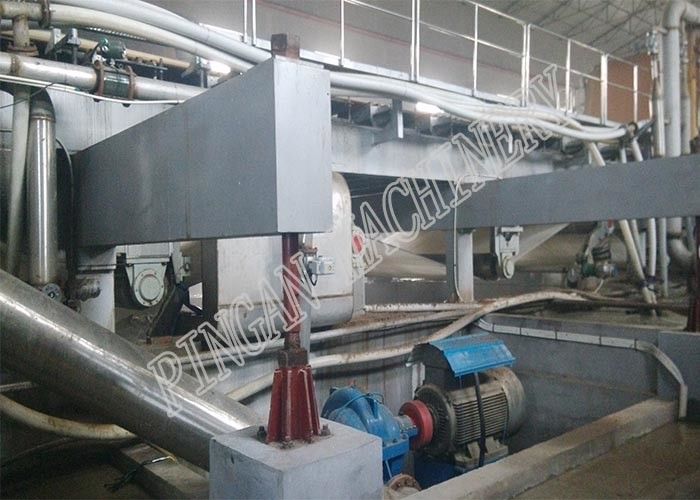

Waste Paper Recycling Machine Fourdrinier Multi - Cylinder

Waste Paper Recycling Machine Fourdrinier Multi - Cylinder

  • High Light

    test liner paper making machine

    ,

    cardboard recycling machine

  • Item
    Waste Paper Recycling Machine
  • Wire Section
    Fourdrinier Wire
  • Color
    Grey Or Customized
  • Sizing Press
    Yes
  • Warranty
    1 Year
  • Output
    High Strength Fluting Paper
  • Place of Origin
    Henan, China
  • Brand Name
    PingAn
  • Certification
    ISO9001:2008
  • Model Number
    4800mm
  • Minimum Order Quantity
    1set
  • Price
    Negotiation
  • Packaging Details
    wooden case
  • Delivery Time
    8 month
  • Payment Terms
    T/T, L/C
  • Supply Ability
    5sets/year

Waste Paper Recycling Machine Fourdrinier Multi - Cylinder

Waste paper recycling machine fourdrinier multi-cylinder paper making machinery



Description

This paper making machine is used to produce A-grade high strength fluting paper based on the weight of 90-150g/m2 .



This fluting paper production line consists following sections:

Wire forming section
Press section
Dryer section
Paper reeling section
Base section
Transmission section



Process flow of the waste paper recycling machine

Hydraulic headbox—froudrinier wire—vacuum pick up+four roll three press nips compound press roll—dryer cylinder 49set (arrangement:(1+4/4v)+4/4V+4/4v+9/1v +11/1V+sizing machine+air floating diverter+dryer cylinder 16sets(arrangement: 5/4v+11/1v )—Calender ----- horizontal reeling machine. Dryer section is non-rope paper leading, sizing machine and reeling machine adopts movable rope paper leading device.



Main technical parameters

  •  Output: A-grade high trenghth fluting paper
  •  Gammage: 90-150g/m2
  •  Capacity: 538T/day
  •  Net paper width: 4800mm
  •  Reeling width: 4860mm
  •  Headbox lip width: 5300mm
  •  Designed speed: 800m/min
  •  Dynamic balance speed: 900m/min
  •  Working speed: 700m/min
  •  Crawl speed: 25m/min
  •  Gauge: 6100mm
  •  Layout: two floors

Main performance requirements and guarantee

  1. The equipment configuration of this machine can reach the expected production capacity, and the internal and external performance requirements of the paper machine should be first considered. This is new machine.
  2. Rubber covered request: Rubber surface guarantee period according to supplier who covered rubber. Will attachment the quality regulation of supplier who covered rubber.
  3. Roll cylinder dynamic balancing speed: 900m/min
  4. Dryer cylinder dynamic balancing speed: 900 m/min
  5. Reeling roll dynamic balancing speed: 2000 m/min
