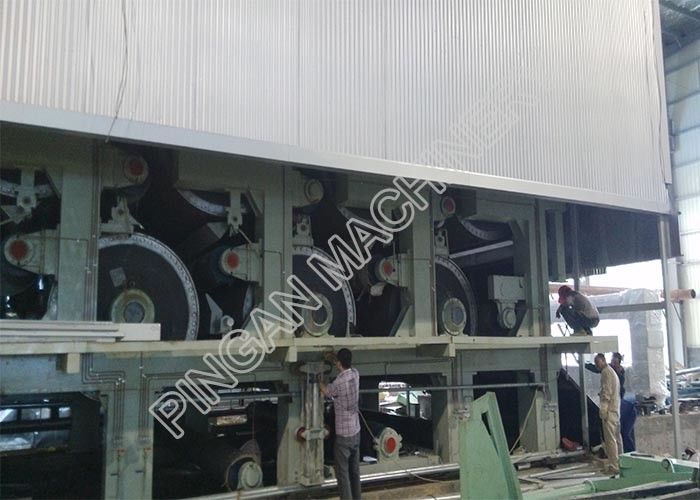

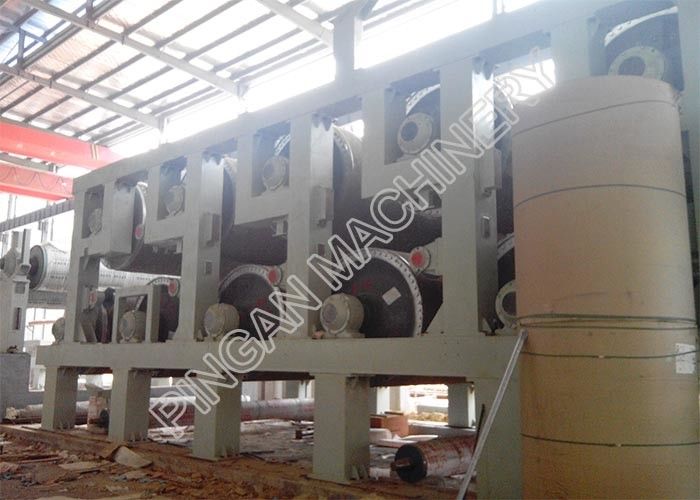

New install kraft paper production line high configuration paper making machine
We supply host kraft paper production line. This production line will cooperate with stock preparation equipment and boilers etc to get qualified kraft paper.
Paper width diagram of the kraft paper production line
|Headbox lip width||3950mm|
|Wire section wet paper width||3850mm|
|Final paper width||3600mm|
Wire section wire table frame
1- Adopts cantilever wire changing mold.
2- The wire table frame of the plant and machinery is composed of breast roll lifting rotary arm, bracket, cushion block and base etc.
3- All cross beams are welded by Q235A steel plate.
4- The cantilever beam is under vacuum couch roll. Its cavity also act as couch roll's drain pipe line.
5- The cantilever side of each cantilever beam in transmission side connects with the base plate's rack by bolts.
6- The T shape groove in the beam is used for fixing dewatering elements.
7- The position of dewatering elements is adjustable according to technological requirements.
8- The contact surface scraping error is not more than 0.05mm, to ensure the flatness and verticality.
1. Before installation,you should check that equipment’s model and dimension are all right with the parts completed and level remaining.
2. Before the debugging of installation,Checking each part is correct, lubrication supply normal. Water, electricity values reaching the standard.
3. During Operation,you should pay attention to keep daily inspection, cleaning and oiling.and then examine and repair regularly.
