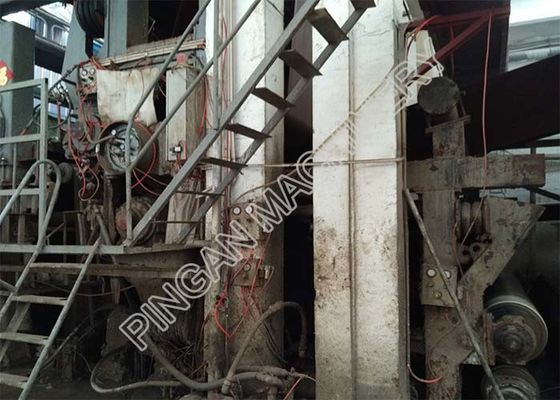

Kraft paper production line left hand paper making machine made in China
Main description
Vacuum points of this kraft paper production line
|
Item |
Position |
Suction volume m³/min |
Suction Mpa |
|
Wire section |
High vacuum (bottom wire) |
210 | 0.028-0.035 |
|
Low vacuum (bottom wire) |
150 | 0.015-0.025 | |
|
High vacuum (top wire) |
90 | 0.015-0.025 | |
|
Low vacuum (top wire) |
Conlusion with bottom wire. |
||
|
Vacuum couch roll |
High suction area 320 Low suction area 180 |
0.05-0.06 0.03-0.04 |
|
|
Wet suction box |
80 | 0.005-0.010 | |
|
Press section |
Pick up roll |
High 180 Low 110 |
0.045-0.055 |
|
Vacuum press |
High suction area 380 Low suction area 180 |
0.045-0.060 0.025-0.040 |
|
|
1# press bottom felt |
280 | 0.045-0.060 | |
|
2# press top felt |
280 | 0.045-0.060 | |
|
3# press top felt |
280 | 0.045-0.060 | |
Warm Tips:
1. Before installation,you should check that equipment’s model and dimension are all right with the parts completed and level remaining.
2. Before the debugging of installation,Checking each part is correct, lubrication supply normal. Water, electricity values reaching the standard.
3. During Operation,you should pay attention to keep daily inspection, cleaning and oiling.and then examine and repair regularly.
