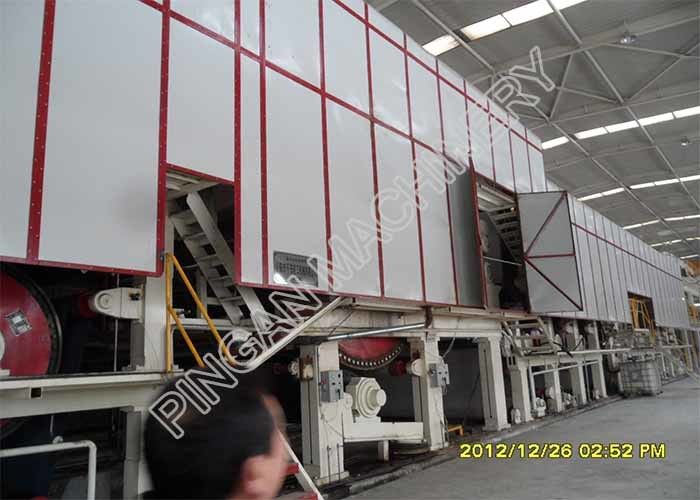

White multi use paper making machine produce top grade multi purpose white paper
Wire section components:
Wire section of the white multi use paper making machine cosists of wire table, forming plate, dewatering plate box, wet suction box, vacuum box, breast roll, breast roll lifting device, water mark roll, vacuum couch roll, wire driven roll, cleaning roll, wire guide roll, corrector, tensioner, doctor, high/low water spray pipe, paper leading cutting and edge fixing water needle, warping edge device, white water pan etc.
Besides wire section, there are press section, dryer section, reeling section, base section and auxiliary equipments in the white multi use paper making machine.
|1. Wire table frame: 1set|
|2. Wire table adopts cantilever wire changing structure. The cantilever arm end on transmission side is fixed with load beam by bolts.|
|3. Wire table is composed of beam, cantilever beam, breast roll rocker arm, bracket, and base etc.|
|4. Column: Q235 steel plate welded, cover stainless steel.|
|5. Cantilever beam: Q235 steel plate welded, cover stainless steel.|
|6. Bracket: Q235 steel plate welded, cover stainless steel.|
